Factory Price Of Automatic Poultry Feeding System Broiler And Breeder Pan Feeder

1 / 5

Factory Price Of Automatic Poultry Feeding System Broiler And Breeder Pan Feeder

Send Inquiry

Product Description

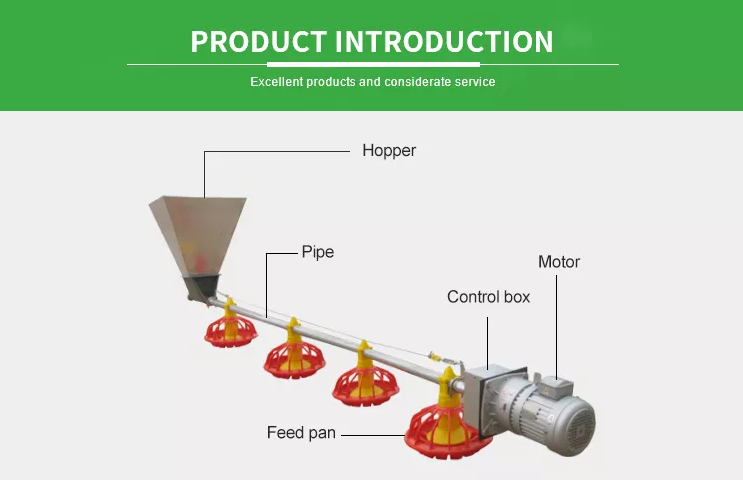

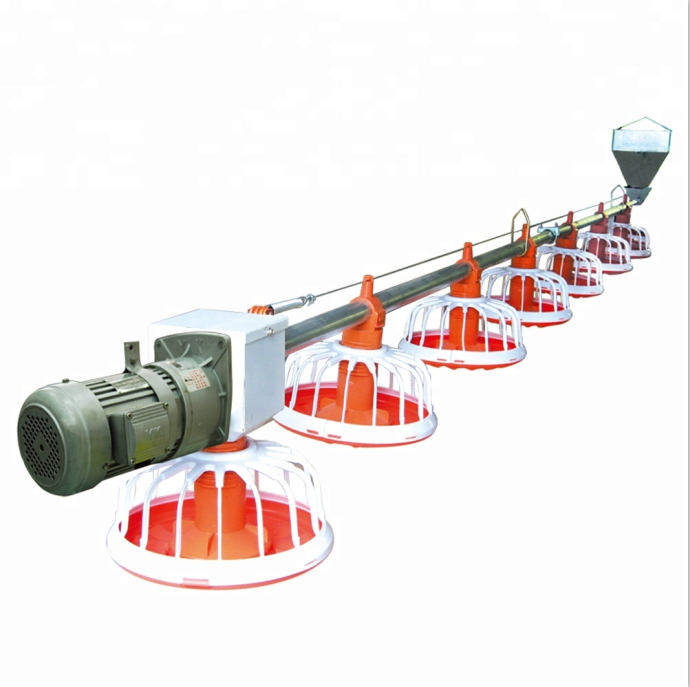

Introduction

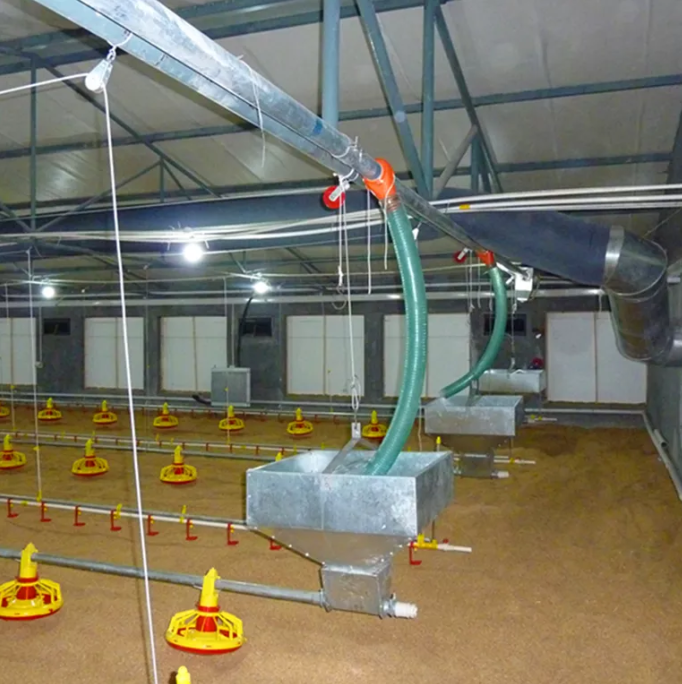

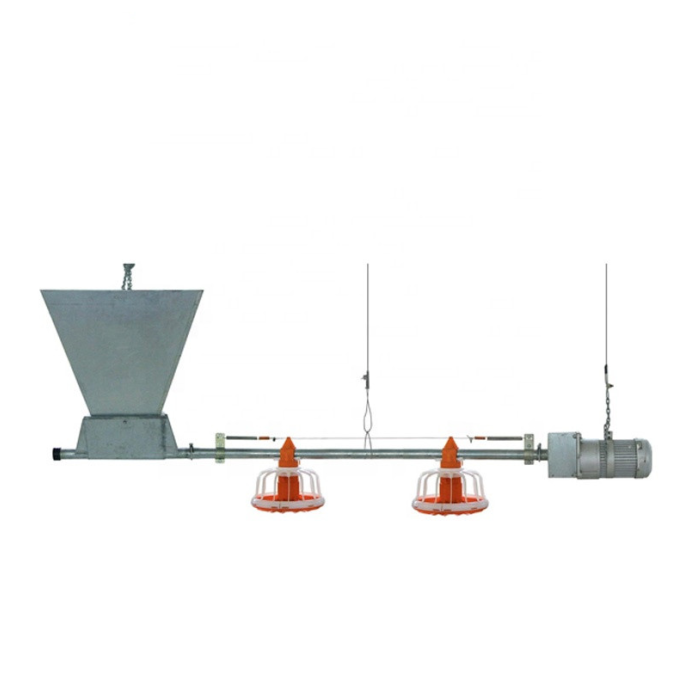

The automatic pan feeding system is designed with state-of-the-art poultry automation technology. It includes a robust driving device, a high-capacity hopper, a conveying pipe, a durable auger, specialized feed trays, a suspension lifting device, an anti-perching mechanism, and an intelligent feed sensor.

The main function of this system is to seamlessly transport feed from the storage hopper directly to each feeding pan, ensuring consistent and stress-free access to feed for broilers. The operation is fully automated, controlled by a precision level sensor that automatically commands the motor to start or stop based on the feed levels.

Main Features

✓ Specially Designed Feed Pans: Built-in rills design minimizes feed wastage and maximizes feed efficiency.
✓ Easy Access Architecture: No need to manually open the pan. Feed downfalls directly to the side of the shallow plate, allowing birds standing outside to eat easily and conveniently.
✓ High Visibility: Features high-contrast coloring so birds can easily identify the pan location and access feed.
✓ Premium PP Material: Manufactured using high-grade Polypropylene (PP) material, ensuring solid construction, high corrosion resistance, and prolonged operational lifespan.
✓ Low Maintenance: Designed for convenient dismantling, making it simple to wash, sanitize, and maintain overall hygiene.

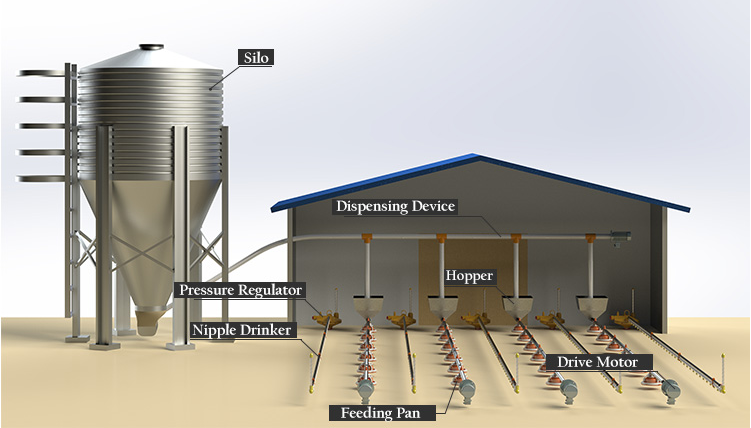

Product Parameters

★ Silo type and ground hopper type options available.
★ Made with high-quality galvanized steel or fiberglass silo.
★ Smooth-running conveying system to quickly deliver adequate feed to each tray.
★ Customizable silo volumes based on the specific number of chickens (based on feed weight of 0.65 T/CBM).
★ Automatic control box equipped with imported level sensors for highly accurate conveying.
★ Adjustable tray height to accommodate chicken growth age, allowing easy removal and cleanup.

Detail Images

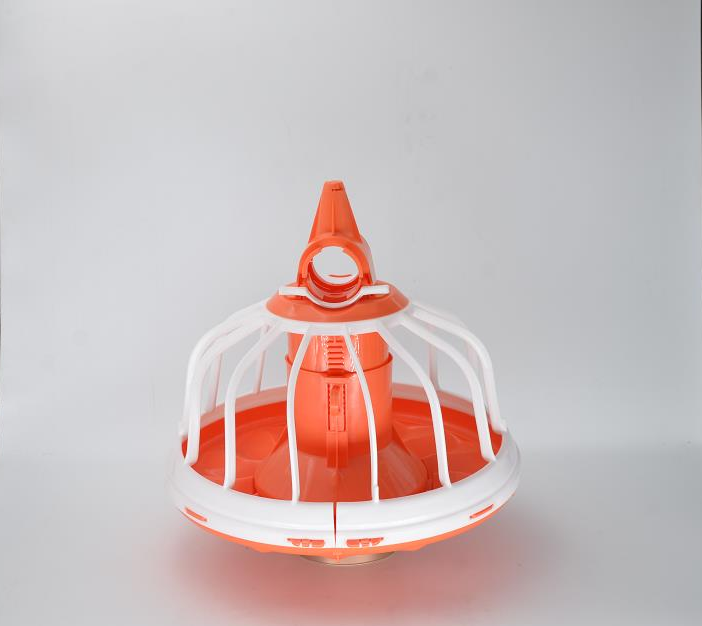

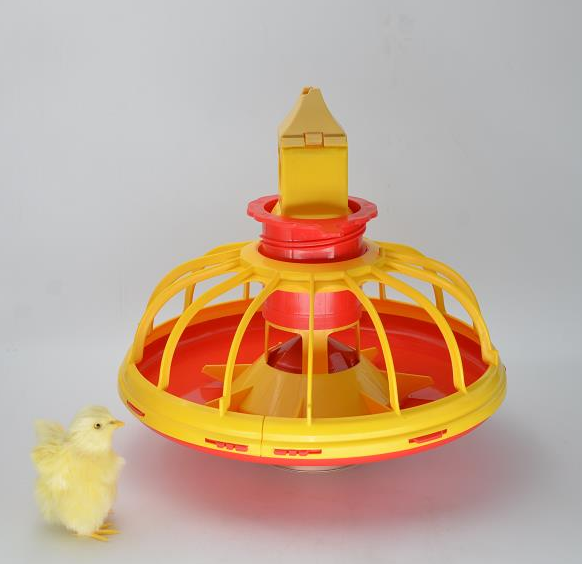

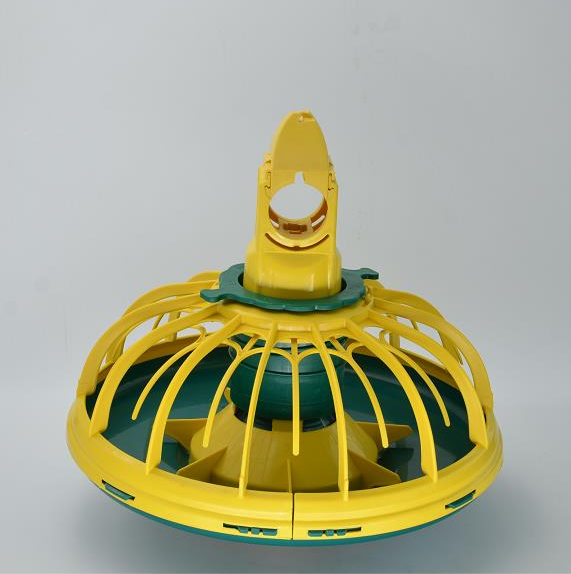

Feed Pan Details

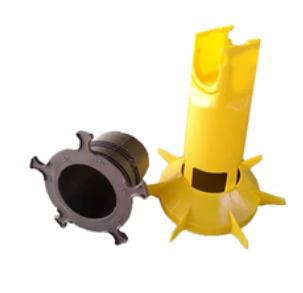

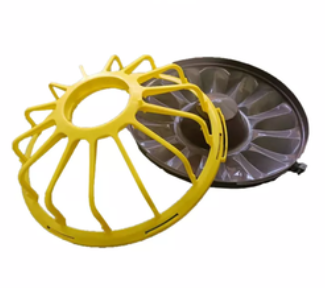

Our premium feed pans are engineered for maximum productivity. The pan can rotate horizontally by 360 degrees for unrestricted access. The top support features a shut-off slide system to accommodate specific brooding and group expansion layouts. The pan bottom and grill are securely locked together by high-strength hinges, with a specially designed feed cone flange to prevent feed loss.

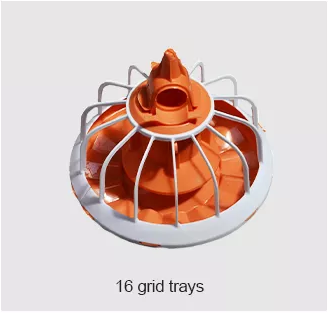

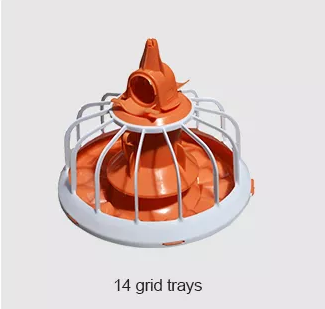

Grids availability: 14 Grid & 16 Grid models can be chosen to suit different breeding requirements.

Grill No.	Feed Birds No./Pan	Grill Distance	Bird Density	Max feed for one bird/Day/Pan	Dimension
14	40-45	70mm	10-12/m²	180g/bird	330-330mm
16	45-50	70mm	10-12/m²	180g/bird	360-360mm

System Components

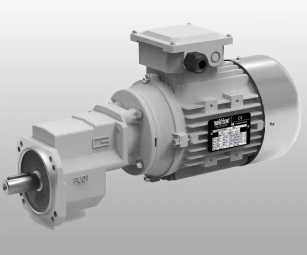

Driving Motor

1. High quality special driving reduction Motor: 750/1100/1500 W; 220 V/380 V; 1/3 phase.
2. High transmission speed: Up to 450 kg/h.
3. Choice of brand components: Italian Transtecno or Chinese Wanxin gear motor options.

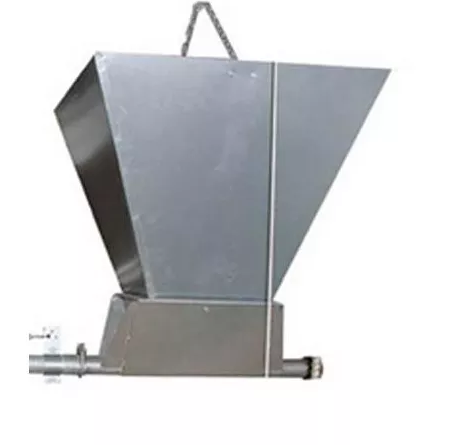

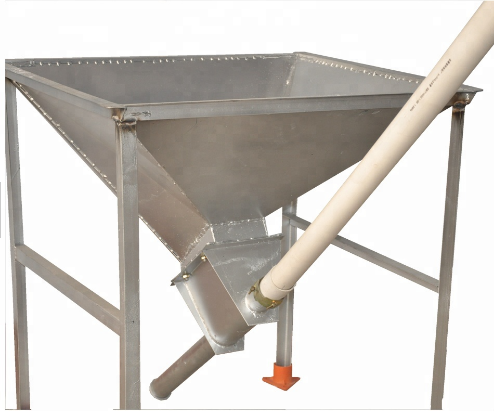

Hopper Unit

1. Storage capacity: Bin Volume options of 70 / 90 / 120 KG.
2. Durability: Made from Hot-dip Galvanized Sheet.
3. Material thickness: 1.0 mm to 1.5 mm solid steel construction.

Intelligent Feed Sensor

1. Precision components: IFM sensor from Germany, featuring a customizable time delay range from 0 to 2 hours.
2. Strategic placement: Typically installed in the 4th or 5th pan of the breeding area to achieve accurate sectional bird breeding controls.
3. Smart automation: High sensitivity ensures quick and accurate sensing of feed levels.

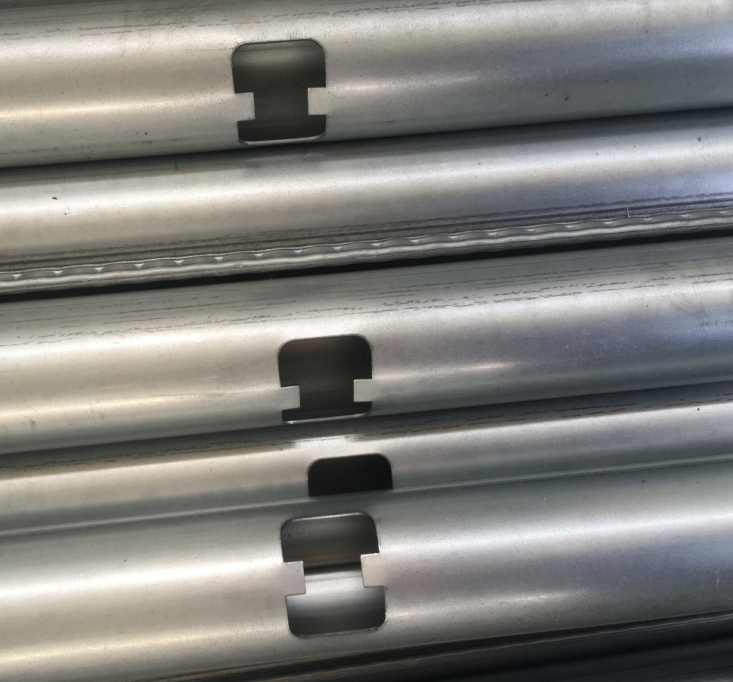

Conveying Feed Pipe

1. Structural specifications: 3-meter length with 4 holes feeding structure.
2. Protective coating: Hot galvanized steel build with a zinc coating thickness of 275 g/m².
3. Dimensions: Outer diameter of conveying pipe is 45 mm.

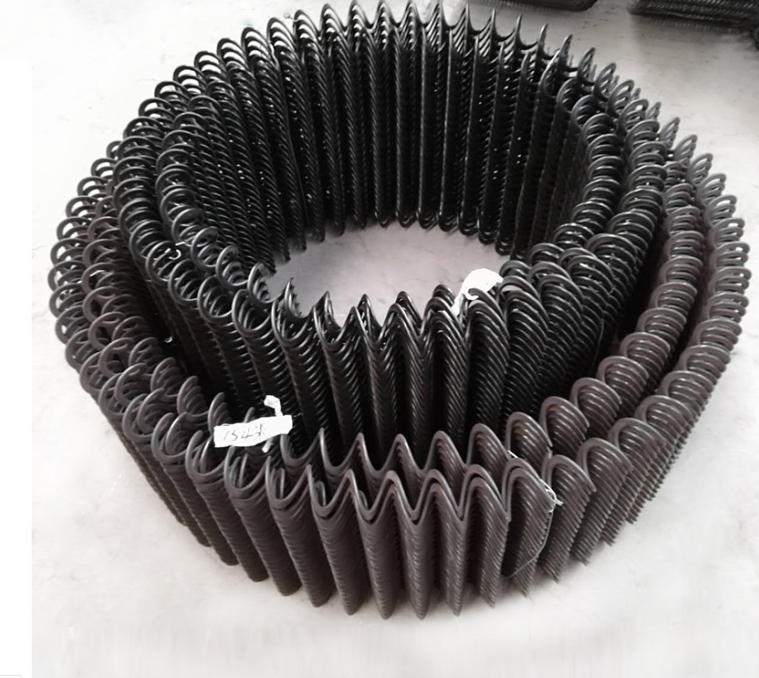

Conveying Auger

1. Premium Import: Auger coils imported directly from South Africa.
2. Durability: Built for high-volume, reliable operational wear life.
3. High capacity: Conveying capacity up to 450 kg/h.
4. Scope: Maximum conveying length up to 140 meters.

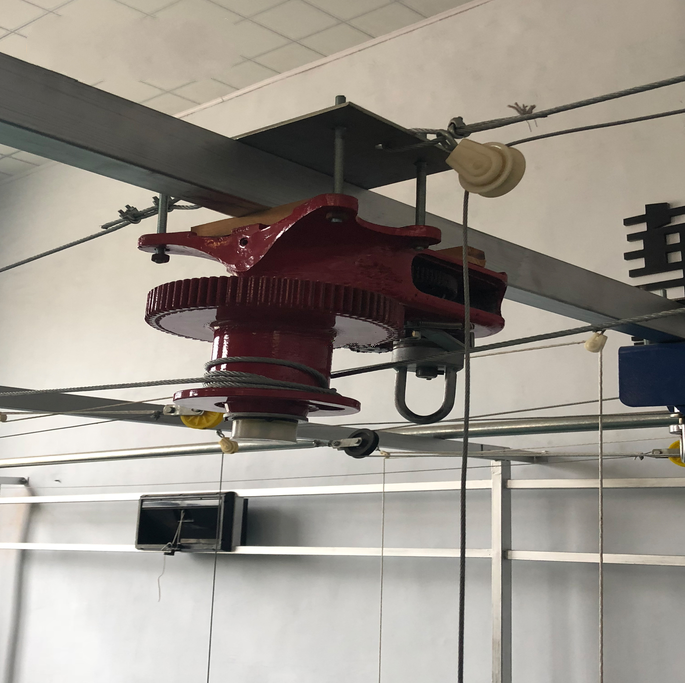

Suspension & Lifting System

1. Complete system parts: Consists of winches, pulleys, mounting fixtures, steel wires, and wire rope clamps.
2. Central installation: Installed down the center of the poultry house, with a standard hanging distance of 3 meters.
3. Ease of use: The height of the entire feeding line can be quickly adjusted using the main winch.

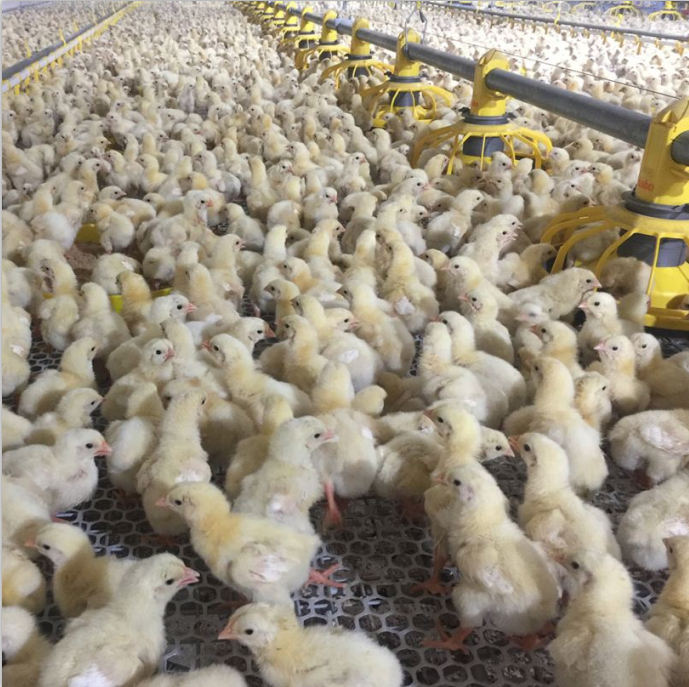

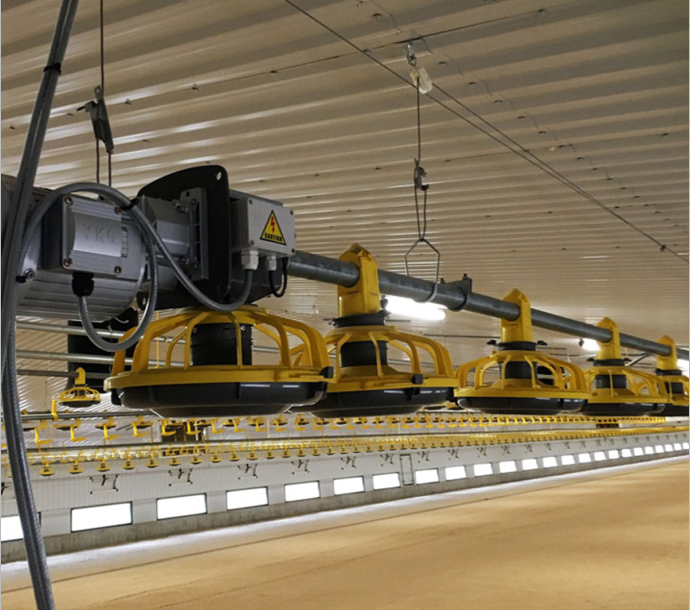

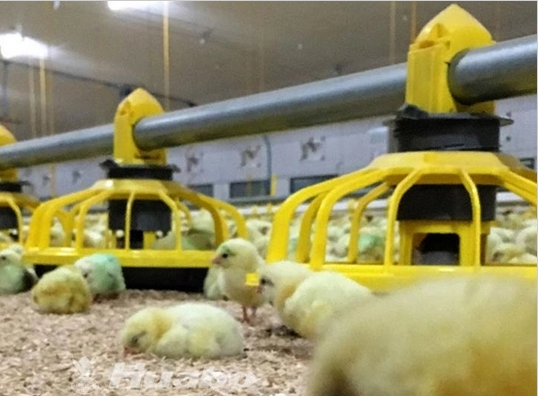

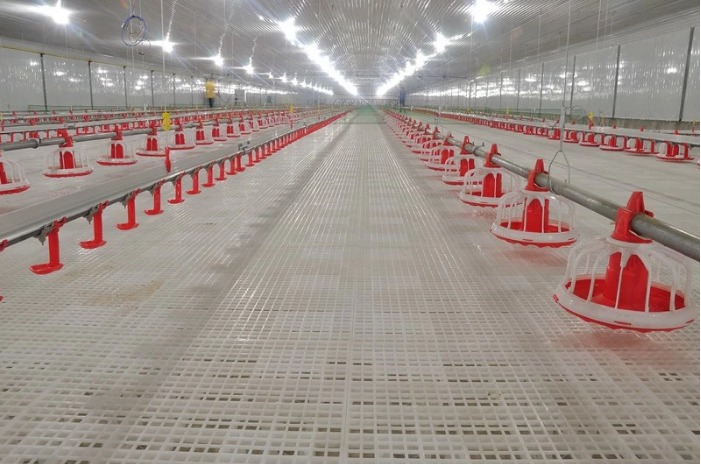

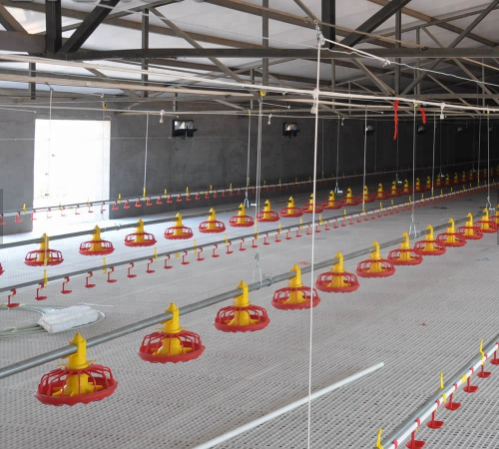

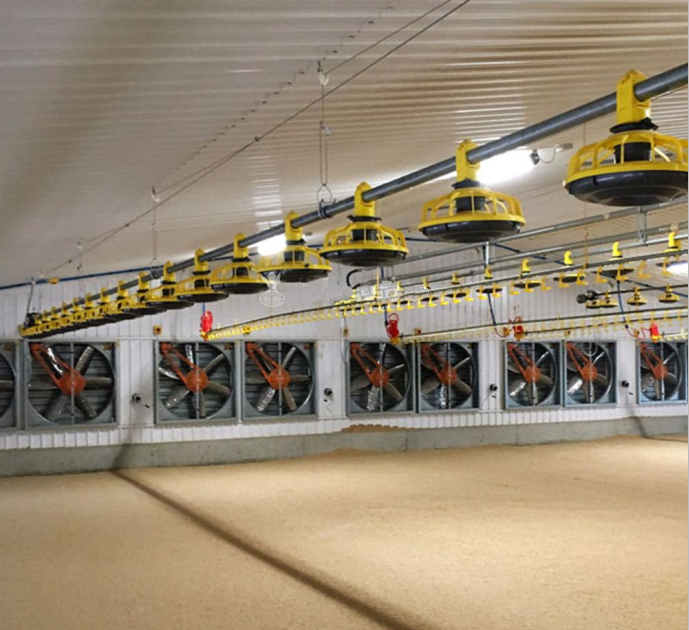

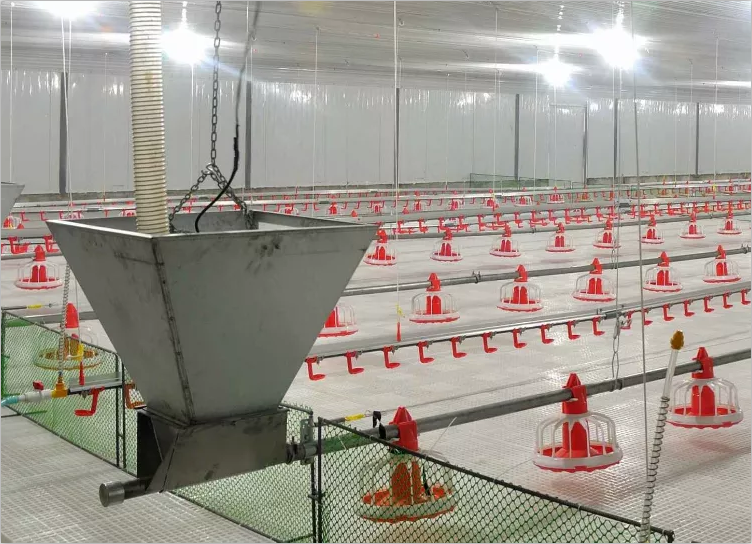

Project Shows

Frequently Asked Questions (FAQ)

1. How does the automatic pan feeding system minimize feed waste?

The feed pans are designed with special rills and a dedicated feed cone flange that prevents feed from spilling. The design ensures feed flows to the center and shallow plate where chickens can easily eat without scattering the feed.

2. Can the pan feed lines be adjusted as the chickens grow?

Yes, the system is equipped with a complete suspension and lifting system. By adjusting the manual or electric winch, you can easily alter the height of the entire feed line to adapt to the age and size of your birds.

3. What material is used for the feed pans, and is it corrosion resistant?

The feed pans are manufactured from high-quality PP (Polypropylene) material. This makes the pans highly durable, structurally firm, and highly resistant to poultry manure corrosion, ensuring long-term use.

4. How does the automated feed sensor operate in this setup?

We utilize high-sensitivity sensors (such as IFM sensors from Germany). The sensor is typically placed in the 4th or 5th pan of the feeding line. When the feed level drops below the sensor limit, it sends an electrical signal to the motor to automatically start conveying feed, and stops when full.

5. What options do I have for hopper and silo capacity?

We offer ground hoppers with capacities of 70kg, 90kg, and 120kg. Additionally, the external silos (available in galvanized steel or fiberglass) can be custom-sized to accommodate the feed requirements based on your specific flock size.

6. What is the maximum conveying length and capacity of the auger system?

The high-quality conveying auger is capable of conveying up to 450 kg of feed per hour. The system supports a maximum conveying line length of up to 140 meters.
