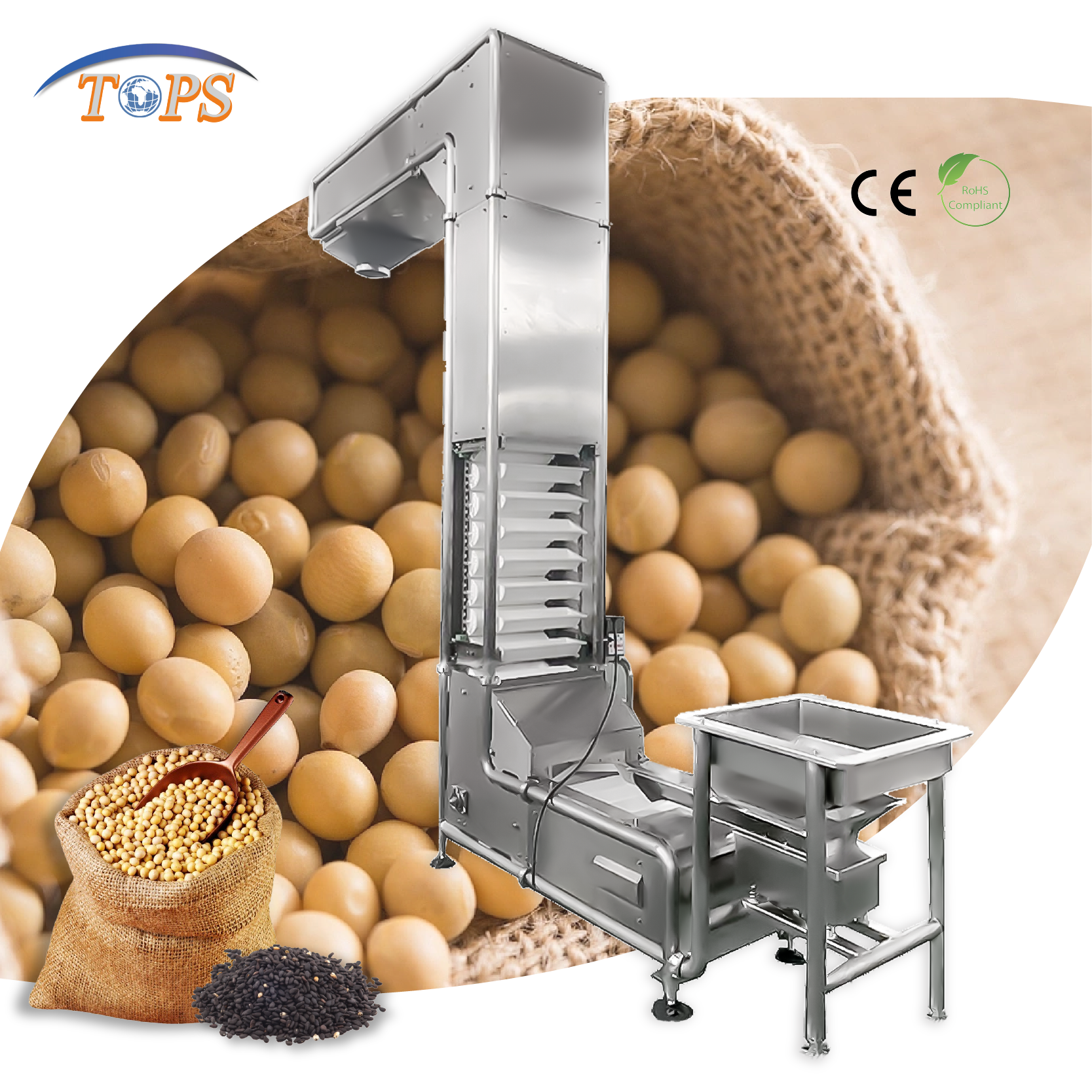

Customized Z type Flat Top Chain Conveyor Drag Bucket Conveyor refers to the transport equipment that continuously transports materials on the chain tractor. It is used for conveying machine that continuously lifts granular or fragmented materials in vertical direction or near vertical direction with large inclination. The utility model has the advantages of simple structure, small floor area, large lifting height, stable operation, low noise and fast speed.
| Machine Parameter | Specifications (TP-BE1) |
|---|---|
| Machine Model | TP-BE1 |
| Bucket Volume | 1.8L |
| Machine Frame | Fully stainless steel #304 |
| Production Capacity | 4-6.5m³/H |
| Outlet Height | Custom made |
| Infeed Length | 863mm |
| Machine Packed Dimension | 2065mm(L) * 1406mm(W) * 1140mm(H) |
| Voltage | AC 220V Single phase or AC 380V, 3 Phase, 50Hz |
| Power | 0.75KW |

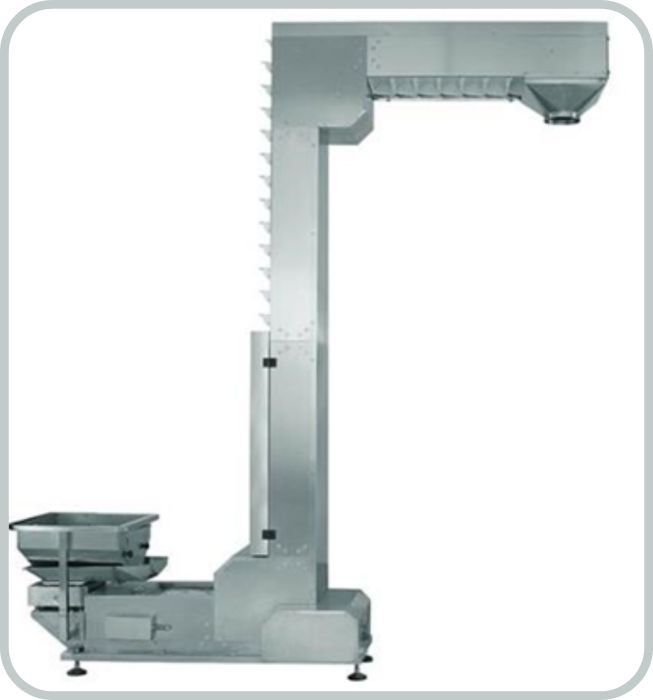

Conventional structure with limited cleaning access and traditional structural frame.

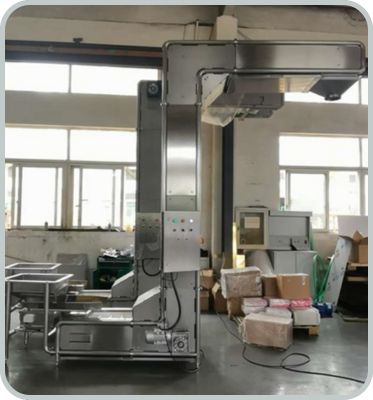

Overall solid, beautiful. It doesn't collect dust easily. All side panels and door panels are removable for easy flushing.

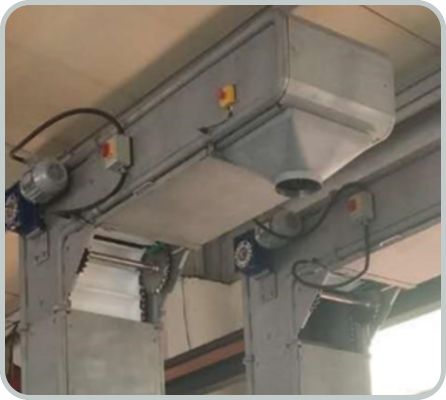

The motor is located at the top, running upward, which provides greater traction. The top assembly is equipped with a power switch and an emergency stop switch, ensuring easy operation and safety management.

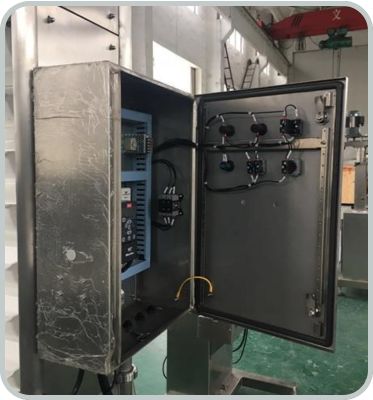

Designed with a groove and sealing strip, ensuring water will not flow into the electrical box during cleaning.

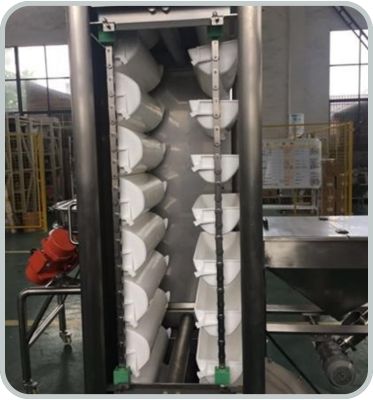

Features a specialized guide rail structure to operate with zero to ultra-low noise levels.

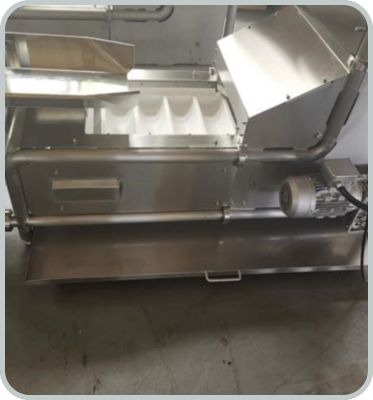

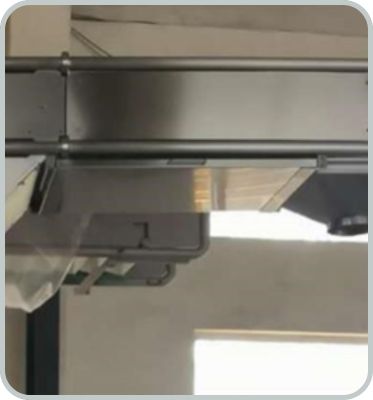

Both the bottom and top of the conveyor are equipped with custom collecting trays to avoid spilling materials from the hoppers onto the ground, keeping the working environment clean.

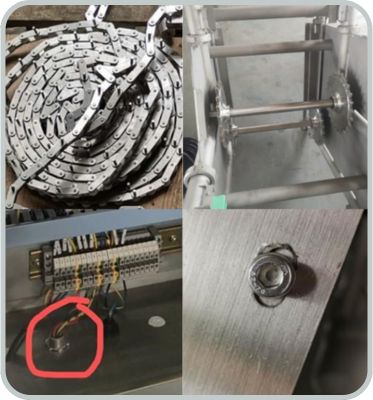

All structural components, hardware, and fasteners are made of premium 304 stainless steel.

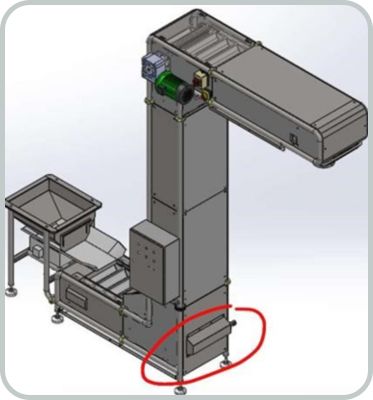

Eliminates the trouble of removing hoppers. This integrated system makes flushing and cleaning hoppers extremely convenient and fast.

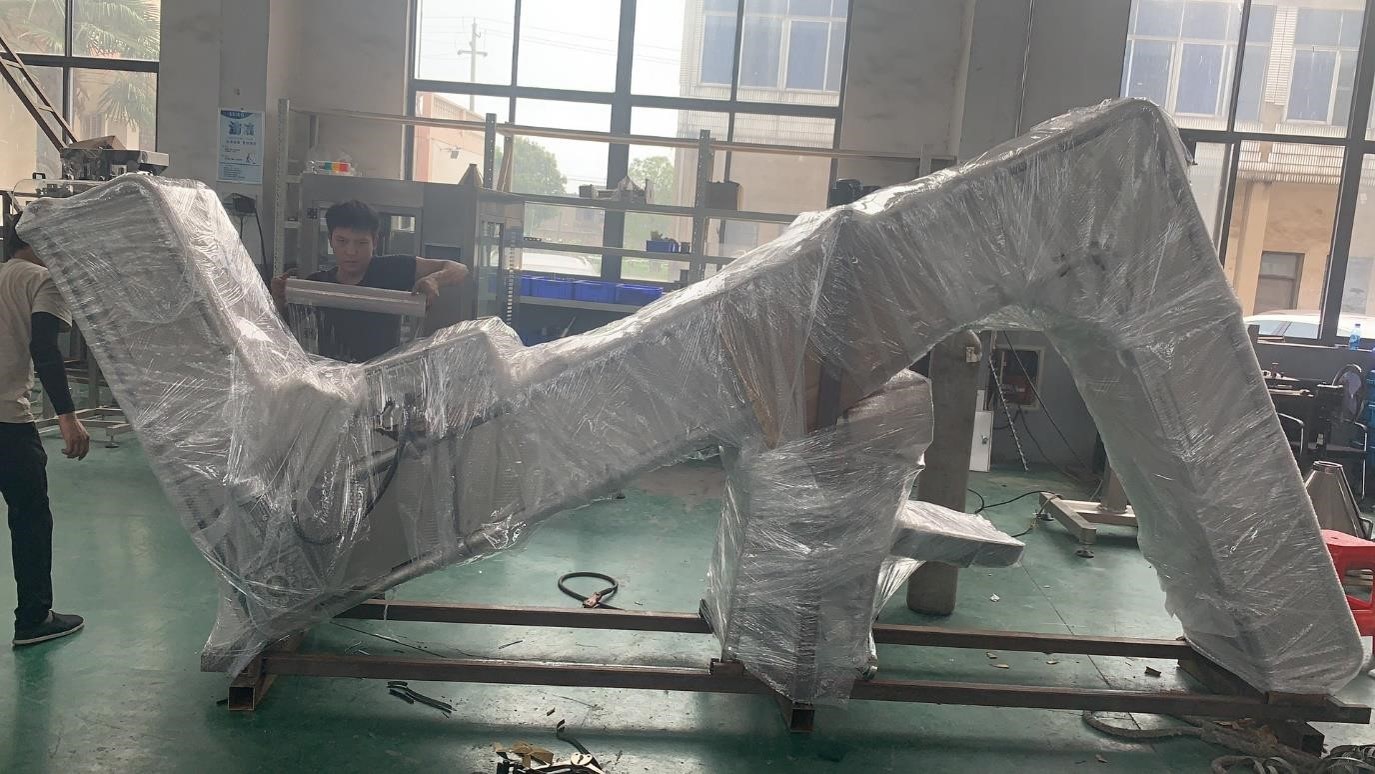

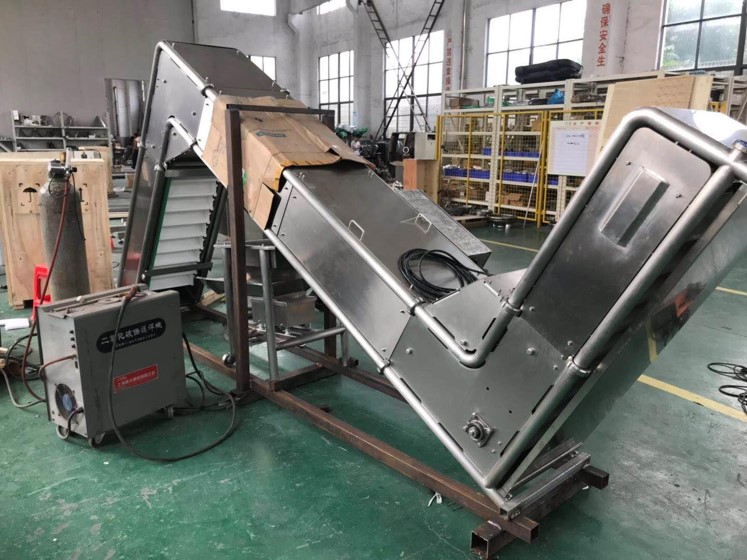

The whole machine is packaged on a steel pallet with plastic bubble film wrapping, preventing structural damage and saving customer installation time and costs upon delivery.
